L-Bar Sealers & Shrink Tunnels

From small benchtop types to the Unishrink shrink tunnel L-bar sealer combination, we offer a broad range of L-Bar Sealers, with and without and shrink tunnels included. Most L-bar sealer models have adjustable temperature, magnetic hold down times and conveyer speeds.

  • unishrink-500cs-with-label

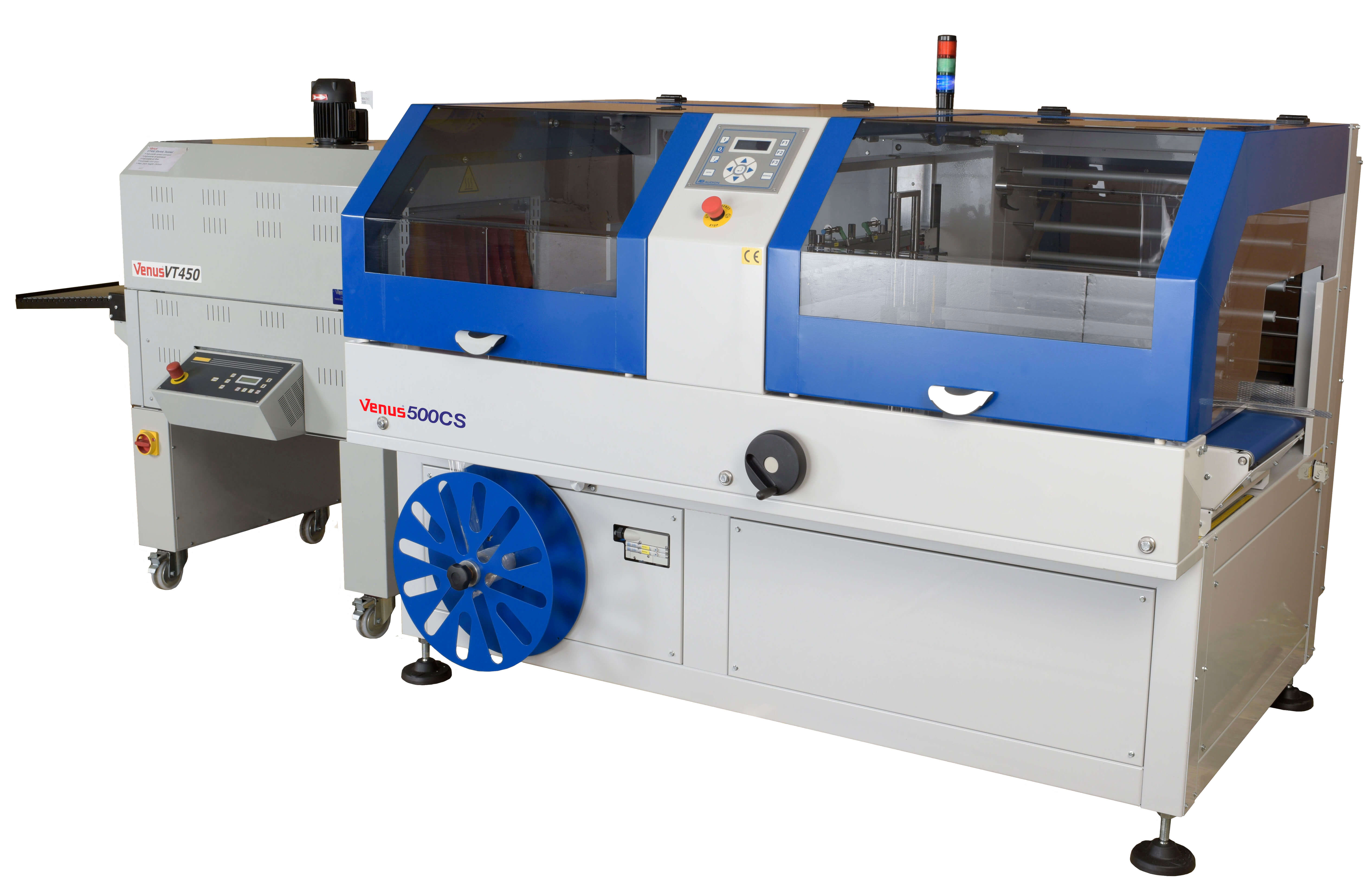

    Venus 500 CS Continuous Side Sealer

    Premium Product

    The Venus 500CS continuously seals the package side. A photo sensor detects the package length and activates a lateral sealing bar. There is no limit to the package length, which allows for higher output and less film wastage. Ideal for fresh food and produce wrapping due to its speed and high volume output. Can be used with PVC and polyolefin films. Attach to a Venus shrink tunnel to shrink wrap final package after wrapping.
    • Seals & shrink wraps up to 4,200 packs per hour
    • Statistic reporting on package counter, package length and performance
    • Able to store 20 different wrapping programs
    • Faulty pack detection
    • Adjustable conveyor speed, sealing time & sealing temperature
    • Easy-to-use control panel
  • unishrink-6001-lac-with-label

    Venus 6001LAC Automatic L-Bar Sealer

    Premium Product

    The Venus 6001LAC can operate totally automatically receiving a continuous stream of packages from an infeed conveyor and then dispatching finished packages to a take-away conveyor. The 6001LAC automatically centres the seal mid-way between the top and the bottom of the package producing a professional looking result. This automatic L-Bar Sealer can be used with PVC and polyolefin films, and has a high volume output, so ideal for use in the fresh produce industries. An optional extra is the Venus VT450 Shrink tunnel which can be attached to the 6001LAC for shrink packing the wrapped product.
    • Automatic sealing bar height control
    • Able to store 20 different wrapping programs
    • Adjustable conveyor speed, sealing temperature and sealing time
    • PTFE coated sealing bar
    • Storage and readout statistics including counter, measurement of pack length & performance
    • Mechanism to control irregular packs
  • seal-and-shrink-combi-machine-p4055

    Seal and Shrink Combi Machine P4055

    Premium Product

    All-in-one L-sealer and shrink tunnel. The L-bar sealer and shrink tunnel are built into the same compact and sturdy unit with a single power source. This model comes with an automatic push down bar with a pneumatically powered sealing bar. Use with PE, PVC and Polyolefin shrink films.
    • Sealing bar (LxW): 400mm x 550mm.
    • Max. pack height: 150mm
    • Tunnel inlet (WxH): 400mm x 200mm.
    • Max. film size (width x diam.): 600mm x 300mm.
    • Machine size (LxWxH): 2570mm x 870mm x 1600mm.
    • Machine weight: 400kg.
    • Power supply: 415v 3ph 50Hz.
    • Air supply: 3.5 to 4.5kg/cm2; 12 month warranty.
  • seal-and-shrink-combi-machine-vs4055

    Seal and Shrink Combi Machine VS4055

    Premium Product

    All-in-one L-sealer and shrink tunnel. The L-bar sealer and shrink tunnel are built into the same compact and sturdy unit with a single power source. This model comes with a manual push down bar with magnetic hold down. Use with PE, PVC and Polyolefin shrink films.
    • Sealing bar (LxW): 400mm x 550mm.
    • Max. pack height: 150mm.
    • Tunnel inlet (WxH): 400mm x 200mm.
    • Max. film size (width x diam.) 600mm x 300mm.
    • Machine size (LxWxH): 2570mm x 870mm x 1600mm.
    • Machine weight: 400kg.
    • Power supply: 415v 3ph 50Hz.
    • 12 month warranty.
  • venus-l-bar-sealer-vhl350

    Venus L bar Sealer VHL350

    Premium Product

    The VHL350 offers a 350mm x 510mm sealing area, adjustable table height and includes a hot air shrink gun. Use with PE, PVC and Polyolefin shrink films.
    • Magnetic hold-down, impulse seal.
    • Includes shrink gun.
    • Sealing area (LxW): 353mm x 458mm.
    • Max. film width: 350mm.
    • Film thickness: 10 to 50um.
    • Machine size (LxWxH): 1000mm x 700mm x 170mm.
    • Machine weight: 31kg.
    • 12 month warranty.
  • venus-l-bar-sealer-vhl450

    Venus L bar Sealer VHL450

    Premium Product

    The VHL450 L-Bar Sealer offers a 450mm x 510mm sealing area, adjustable table height and includes the VHL350 hot air shrink gun. Use with PE, PVC and Polyolefin shrink films.
    • Magnetic hold-down, impulse seal.
    • Includes shrink gun.
    • Sealing area (LxW): 458mm x 511mm.
    • Max. film width: 450mm.
    • Film thickness: 10 to 50um.
    • Machine size (LxWxH): 1060mm x 780mm x 170mm.
    • Machine weight: 36kg.
    • 12 month warranty.
  • venus-l-bar-sealer-vh300lib-shrink-wrap-sealer

    Venus L Bar Sealer VH300LIB Shrink Wrap Sealer

    Premium Product

    Venus L-Bar Sealer VH300LIB with a 330mm x 330mm sealing area and separate film roll holder. Use with PE, PVC and Polyolefin shrink films.
    • Maximum seal length: 330mm x 330mm.
    • Film roll diameter: 216mm.
    • Seal timer: 1 to 3 seconds.
    • Power: 750w.
    • Film thickness: 10 to 50um.
    • Machine weight: 8kg (+ 1kg roller weight).
    • Sealer dimensions: 495mm x 420mm x 160mm.
    • Film roll dispenser incld. * Heat shrink gun and film sold separately.
  • venus-l-bar-sealer-vh400lib-shrink-wrap-sealer

    Venus L Bar Sealer VH400LIB Shrink Wrap Sealer

    Premium Product

    Venus L-Bar Sealer VH400LIB has the same features as the VH300LIB but with a 400mm x 600mm sealing area. Use with PE, PVC and Polyolefin shrink films.
    • Maximum seal length: 400mm x 600mm.
    • Film roll diameter: 280mm.
    • Seal timer: 1 to 3 seconds.
    • Power: 1200w.
    • Film thickness: 10 to 50um.
    • Machine weight: 14kg (+2.3kg roller weight).
    • Sealer dimensions: 550mm x 620mm x 200mm.
    • Film roll dispenser incld. * Heat shrink gun and film sold separately.
  • venus-l-bar-sealer-vh400lib-shrink-wrap-sealer

    Venus L Bar Sealer VH550LIB Shrink Wrap Sealer

    Premium Product

    Venus L-Bar Sealer VH550LIB has the same features as the 300 & 400 models but with a 550mm x 600mm sealing area. Use with PE, PVC and Polyolefin shrink films.
    • Maximum seal length: 550mm x 600mm.
    • Film roll diameter: 311mm.
    • Seal timer: 1 to 3 seconds.
    • Power: 1200w.
    • Film thickness: 10 to 50um.
    • Machine weight: 16kg (+ 3kg roller weight)
    • Sealer dimensions: 650mm x 620mm x 200mm.
    • Film roll dispenser incld. * Heat shrink gun and film sold separately.
  • venus-l-bar-sealer-vh560l-vt450

    Venus L Bar Sealer (pictured with Shrink Tunnel) VH560L

    Premium Product

    The Uni560 L-Bar Sealer comes with a permanent liquid cooling system and Teflon coated sealing bars. This model comes with an adjustable speed conveyor and 6 automatic programs. Expect to achieve up to 1400 packs/hour. Available to add on is the VT450 Shrink Tunnel (see below for details). Use with PE, PVC and Polyolefin shrink films.
    • Sealing bar (LxW): 540mm x 430mm.
    • Max. pack height: 250mm.
    • Max. film size (width x diametre): 800mm x 300mm.
    • Machine size (LxWxH): 1410mm x 750mm x 1045mm.
    • Machine weight: 120kg.
    • Power supply: 240v 1ph 50Hz.
    • 12 month warranty
  • venus-l-bar-sealer-vh560l-vt450

    Venus Shrink Tunnel VT450

    Premium Product

    The VT450 Shrink Tunnel comes with touchpad display, adjustable shrink chamber temperature, automatic tunnel turn-off system and handy electronic pack counter; and can be paired with a variety of L-Bar Sealers. Use with PE, PVC and Polyolefin shrink films.
    • Max. pack size (WxH): 410mm x 230mm.
    • Machine size (LxWxH): 1310mm x 835mm x 1400mm.
    • Machine weight: 187kg.
    • Power supply: 415v 3ph 50Hz.
    • Adjustable speed conveyor.
    • Adjustable air flow.
    • Automatic turn-off.
    • 12 month warranty.
  • venus-l-bar-sealer-vh870l-vt650s

    Venus L Bar Sealer (pictured with Shrink Tunnel) VH870L

    Premium Product

    The Uni870 L-Bar Sealer comes with a permanent liquid cooling system and Teflon coated sealing bars. This model comes with an adjustable speed conveyor and 6 automatic programs. Expect to achieve up to 900 packs/hour. Available to add on is the VT650S Shrink Tunnel (see below for details). Use with PE, PVC and Polyolefin shrink films.
    • Sealing bar (LxW): 870mm x 620mm.
    • Max. pack height: 300mm
    • Max. film size (width x diametre): 800mm x 300mm.
    • Machine size (LxWxH): 3015mm x 1005mm x 1125mm.
    • Film thickness: 10 to 50um
    • Machine weight: 247kg.
    • Power supply: 240v 1ph 50Hz.
    • 12 month warranty.
  • venus-l-bar-sealer-vh870l-vt650s

    Shrink Tunnel VT650S

    Premium Product

    The VT650S Heat Shrink Tunnel can be teamed with a variety of L-Bar Sealers and comes with a single heat chamber and silicone coated rollers. Use with PE, PVC and Polyolefin shrink films.
    • Max. pack size (WxH): 650mm x 280mm.
    • Machine size (LxWxH): 1390mm x 1090mm x 1565mm.
    • Machine weight: 241kg.
    • Power supply: 415v 3ph 50Hz.
    • Adjustable speed conveyor.
    • Adjustable air flow.
    • Automatic turn-off.
    • 12 month warranty.
  • venus-l-bar-sealer-6000la-vt650d

    Shrink Tunnel VT650D

    Premium Product

    The VT650D Shrink Tunnel (pictured with the 6000LA Shrink Packaging Machine) has all the features of the VT450 but its larger volume and twin fans circulate air more evenly around larger packages. Like the VT 450 it can be teamed with a variety of L-Bar Sealers. Use with PE, PVC and Polyolefin shrink films.
    • Max. pack size (WxH): 650mm x 280mm.
    • Machine size (LxWxH): 1910mm x 1090mm x 1565mm.
    • Machine weight: 241kg.
    • Power supply: 415v 3ph 50Hz.
    • Adjustable speed conveyor.
    • Twiin fans; Adjustable air flow.
    • Automatic turn-off.
    • 12 month warranty.
  • venus-sleeve-shrink-500

    Venus Sleeve Shrink 500

    Premium Product

    The all-in-one sleeve wrapping shrink system. Individual items such as bottles, cans, boxes, jars and cartons of different sizes are sleeve wrapped into one manageable package. The sleeve shrink system is used for a variety of products including beverages, wine and spirits, food, chemicals, cosmetics and detergents. Please note: to ensure sufficient film coverage the package length + height or length + width cannot exceed the film width of 480mm. Use with PE, PVC and Polyolefin shrink films.
    • Max. pack size (LxWxH): 300mm x 470mm x 230mm.
    • Max. film width: 480mm.
    • Machine size (LxWxH): 1900mm x 870mm x 1720mm.
    • Machine weight: 135kg.
    • Power supply: 415v 3ph 50Hz.
    • Air supply: 6 bar.
    • 12 month warranty.
  • venus-sleeve-shrink-700

    Venus Sleeve Shrink 700

    Premium Product

    The Venus Sleeve Shrink 700 is the complete all-in-one sleeve wrapping shrink system. Individual items such as bottles, cans, jars and cartons of different sizes are sleeve wrapped into one manageable package. The sleeve shrink system is used for a broad range of products including beverages, wine and spirits, food, chemicals, cosmetics and detergent. Please note: to ensure sufficient film coverage the package length + height or length + width cannot exceed the film width of 680mm. Use with PE, PVC and Polyolefin shrink films.
    • Max. pack size (LxWxH): 400mm x 670mm x 320mm.
    • Max. film width: 680mm.
    • Machine size (LxWxH): 3000mm x 1150mm x 2000mm.
    • Machine weight: 375kg
    • Power supply: 415v 3ph 50Hz.
    • Air supply: 6 bar.
    • 12 month warranty.
