Venhart Box Bottomer Air Assisted CPN Series

Product Image - Venhart Box Bottomer Air Assisted CPN Series

Venhart Box Bottomer Air Assisted CPN Series

Product description

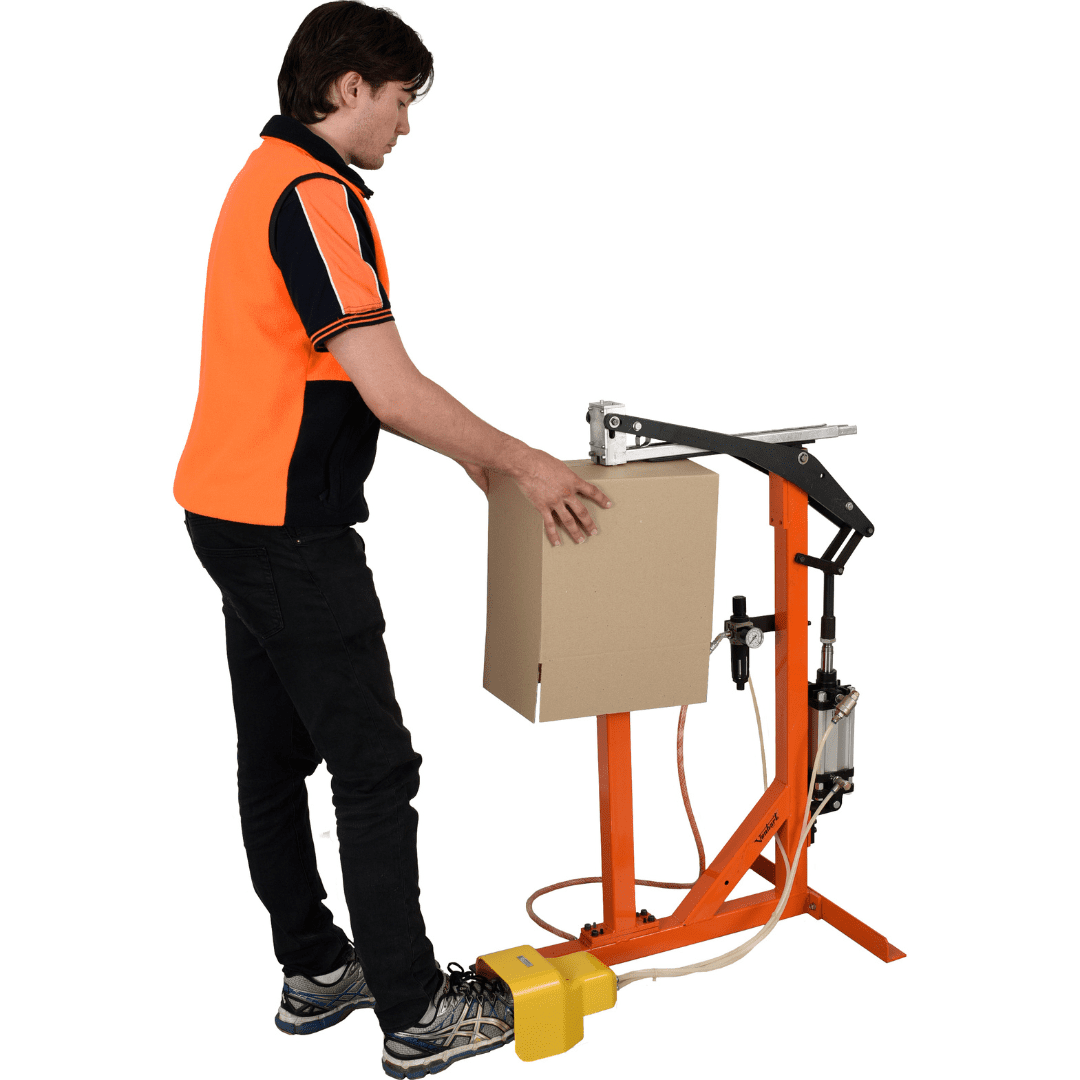

The Venus Box Bottomer Air Assisted CPN series features a solid and sturdy welded steel construction with fixed foot pedal. To use, the operator places the inverted carton on the box bottomer post with the flaps closed. The stapler is triggered by the pneumatic foot switch which firmly applies a staple across the bottom flaps. Depending on the size of the carton 2, 3 or more staples may be applied using this method before the bottom of the carton is firmly sealed. This model is an excellent choice for mid to high level output; and features easy air assisted operation at approximately 120 staples per minute, while the magazine holds 150 staples. The air supply is adjustable via the pressure regulator from 30 to 145psi Weight 48kg.

Features:

  • CPN34 18: Uses Venhart B15 or B18 staples. (34mm crown with 15mm or 18mm leg)
  • CPN35 18: Uses Venhart A15 or A18 staples. (35mm crown with 15mm or 18mm leg)
  • CPN35: Uses Venhart A15 and A18 staples. (35mm crown with 15mm or 18mm leg).
